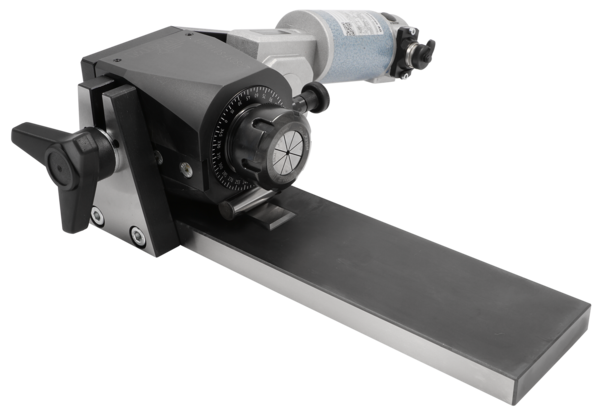

Cylindrical grinding unit Rapid mini
For cantilevered cylindrical grinding on surface grinding machines

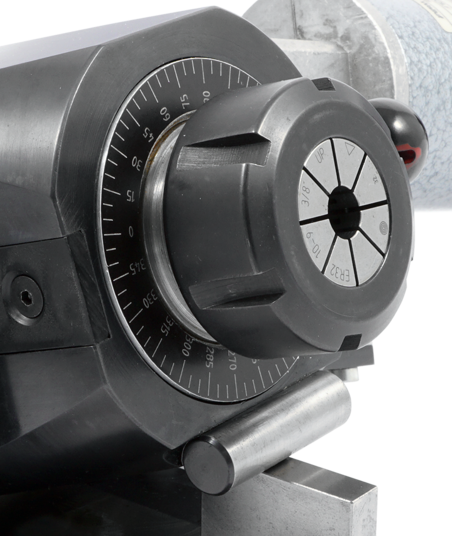

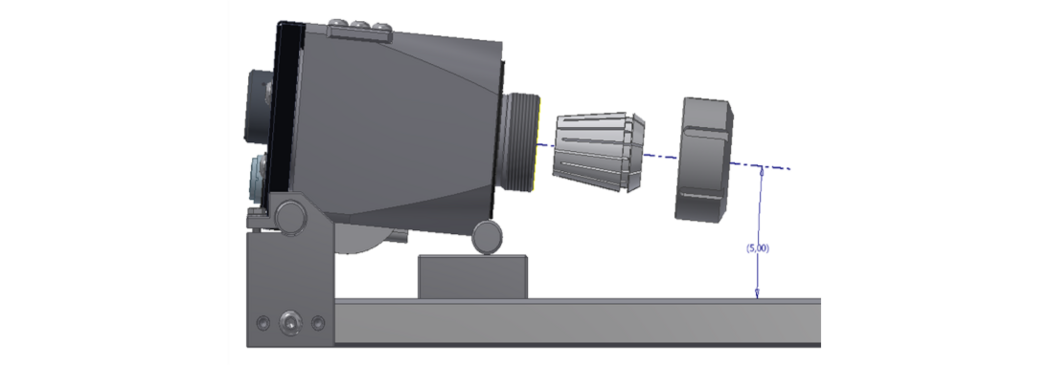

- With E32 collet holder

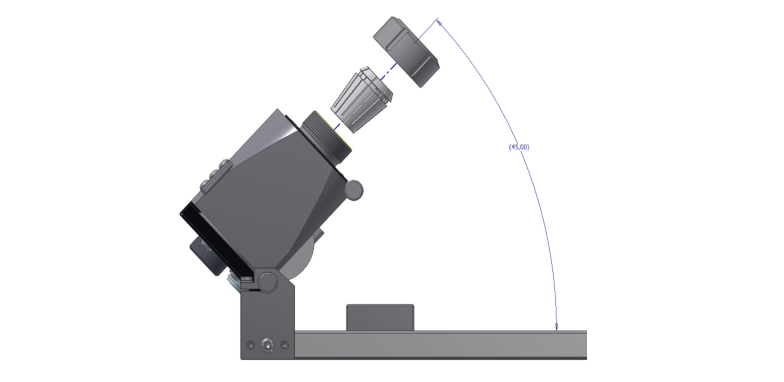

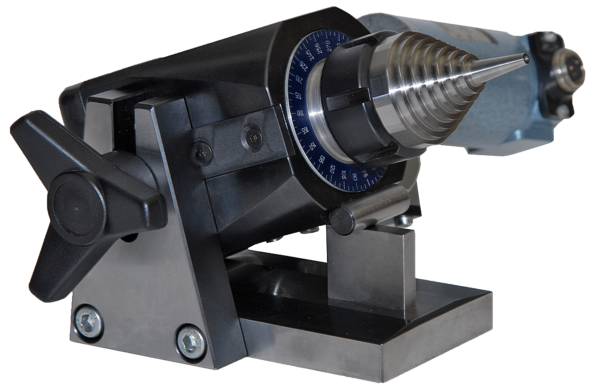

- Cone grinding up to 45°
- Index dividing head 15°, for polygonal surfaces
- Cylindrical grinding
- Cone grinding
- Radius grinding (concave / convex)
- Conical dovetail profile grinding
- Surface grinding
- Polygon grinding
- Plunge grinding
Catalog-# / Description

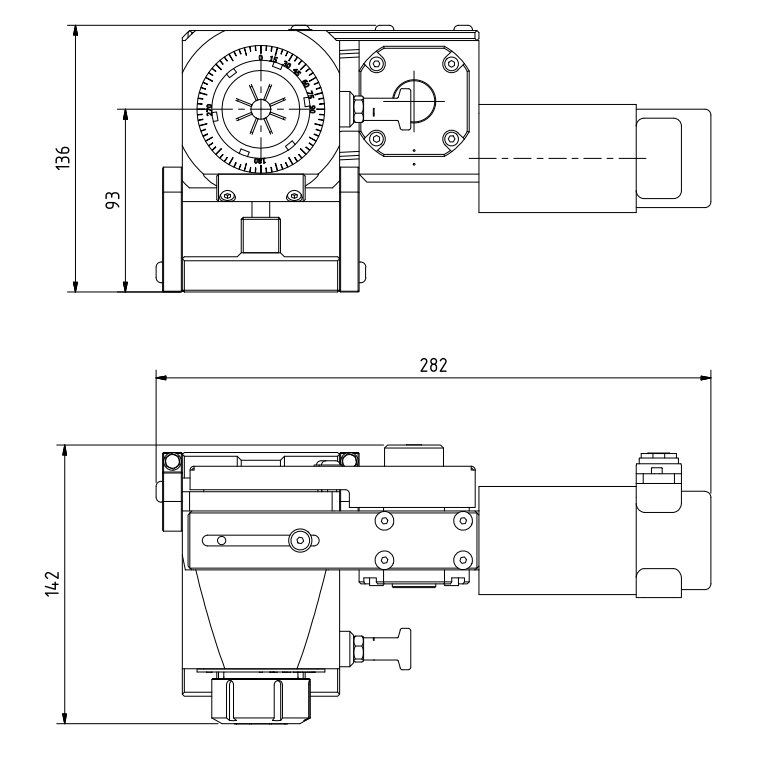

Technical details

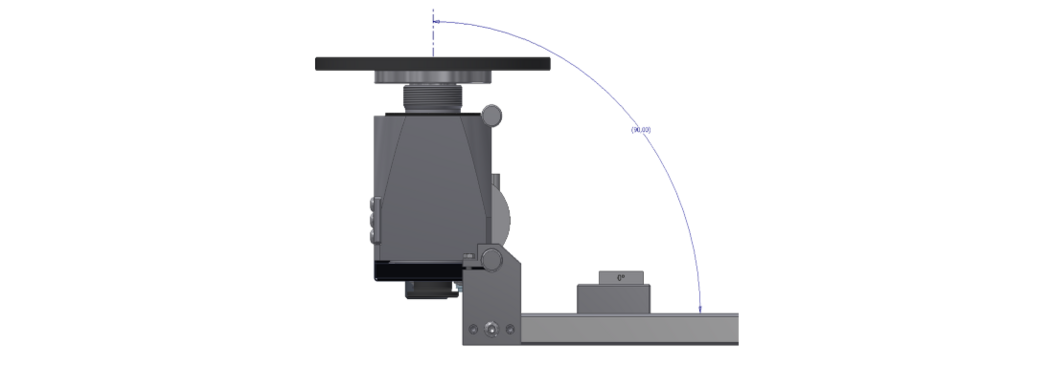

| Technical data | |
|---|---|
| Supporting surface approx. | 125x100mm |
| Weight approx. | 9 kg |
| Height (horizontal) approx. | 110mm |
| Height (vertical) approx. | 175mm |
| Index dividing apparatus | 15° |
| Centre height approx. | 45mm |
| Tool holder | E32 (for collets Ø 2-20mm) |
| Spindle rotation | 0,002mm |
| Drive system | electric motor, infinitely variable, 0-300 rpm, clockwise / anti-clockwise rotation switchable |
| Power supply | 220-240V 50Hz 70W |

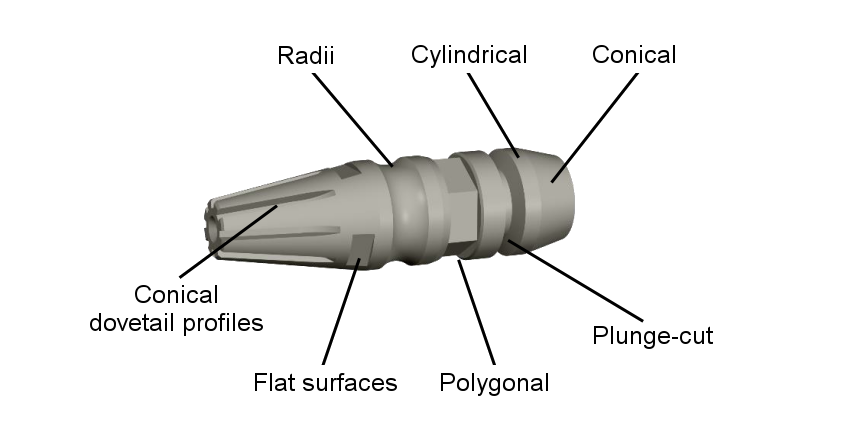

Application examples
Often a round ground single part is acutely needed...!
You solve this task with extended possibilities of your surface grinding machine
Documents
| Accessory | Description | Article | |
|---|---|---|---|
 | Control unit, for RAPID grinding unit | 4.SG01 | to product |
 | 3-jaw chuck for RAPID grinding unit | 4.0.BF080 | to product |
 | Magnetic clamping chuck for RAPID grinding unit | 4.0.MF.xxx | to product |
 | Collet holders for RAPID grinding unit | 4.0.xxx | to product |
 | Driving tip for RAPID grinding unit | 4.MNS01.80 | to product |
