Article 3.WV05

3.WV05

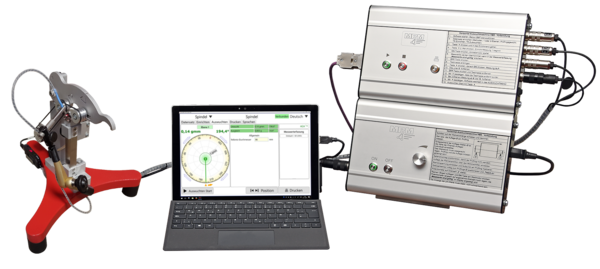

Complete system
Dental rotor with workpiece holder
Vibration sensor

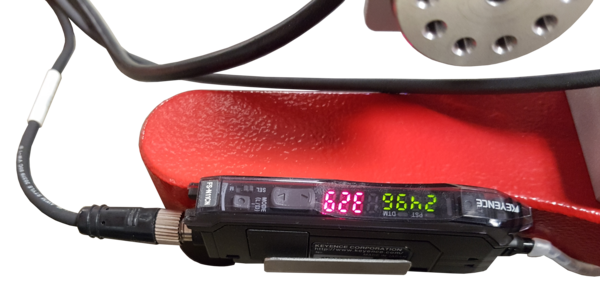

Speed sensor

Balancing device 3.WV05

For balancing of smallest rotors

  • For smallest rotors / dental rotors
  • Highest measuring accuracy < 0,1gmm
  • Comfortable and simple to use
  • Exchangeable specific workpiece holders
  • Compact low weight construction
  • Antimagnetic design
  • Flexible axial stop, easily adjustable

Additional required components:

  • Balancing electronics 3.BMT240M.T.2
  • Start module 3.HM5.SM02

Catalog-# / Description

Catalog-# Order-# Description
3.WV05 1018365A Balancing device for smallest rotors

Technical details

Mechanics Elektronics / Sensors
For smallest rotors / dental rotors Balancing electronics 3.BMT240M.T.2 incl. balancing software BalconBMT
Highest accuracy and repeatability Start module 3.HM5.SM02 speed control, left / right rotation
Changeable workpiece holder Speed controlled servo drive
Maintenance-free Balancing accuracy < 0,1gmm
Antimagnetic construction Speed sensor optical, 3.WV01.OD.02
Compact leightweight design Vibration sensor, 3.PU.M9.4.01,5.V2.1
Userfriendly with quick clamping Create balancing protocols with BalconBMT software
Easily adjustable axial stop 230 V / 50 Hz; 120 W

Dimensional drawings

AccessoryDescription Article
Balancing electronics incl. balancing software BalconBMT for 3.HM5 / 3.WV05 3.BMT240M.T.2to product
Start module for 3.HM5 / 3.WV05 3.HM5.SM02to product
CAN-USB-Adapter,
Connection between PC and data cable
3.CAN.USB.TSto product
Data cable, 9-way,
Connection balancing electronics and CAN-USB adapter
3.DKC.B09.01to product
Precision pocket scales 3.CMto product
Vibration sensor for 3.HM5 / 3.WV05 3.PU.M9.4.1,5.V2.1to product
Optical speed sensor for 3.HM5 / 3.WV05 3.DS.WV01.OD.02to product
Articulated tripod, for mounting the speed sensor 3.0.GS00to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
